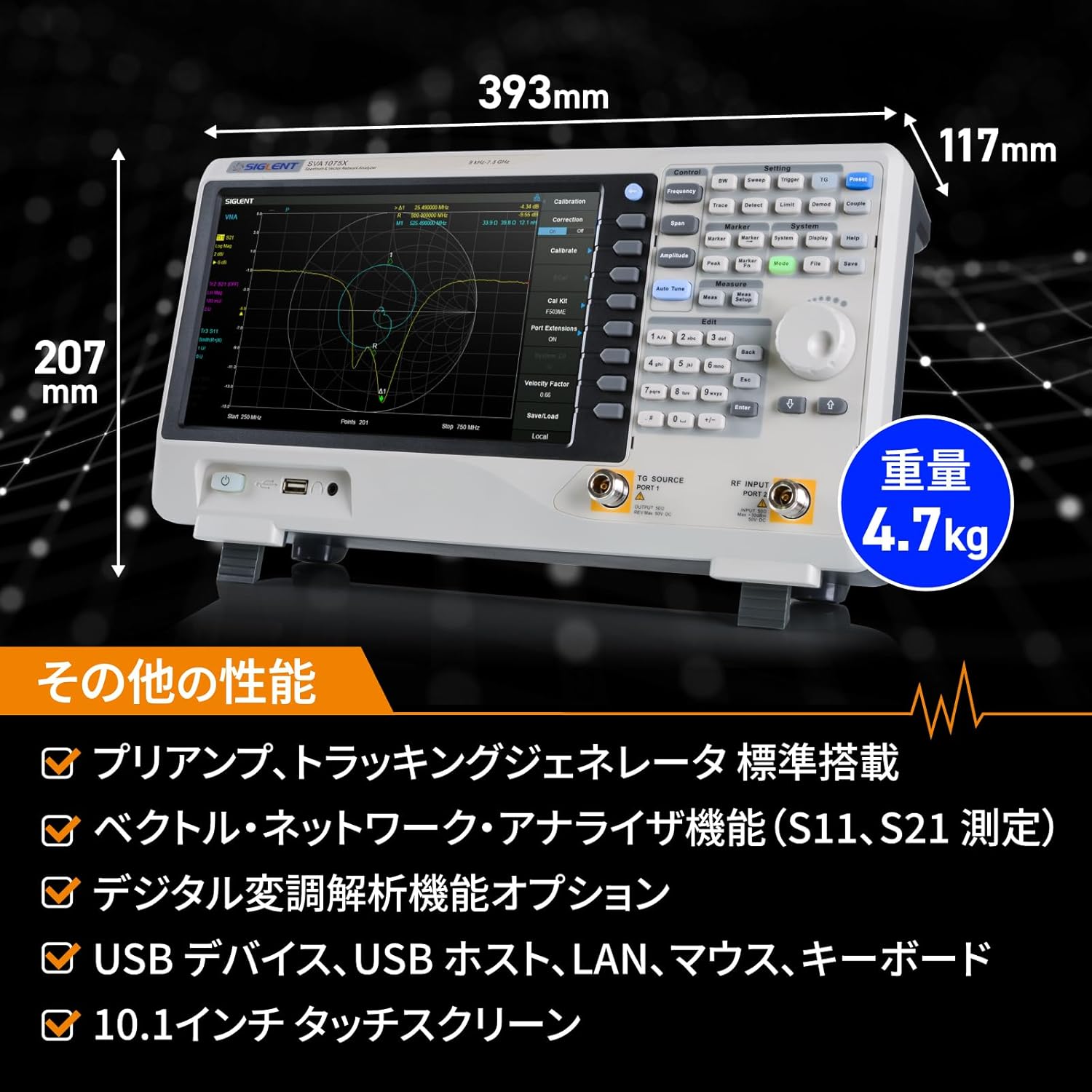

SIGLENT SVA1015X Spectrum Vector Analyzer 9 kHz up to 1.5 GHz Frequency Range + Tracking Generator

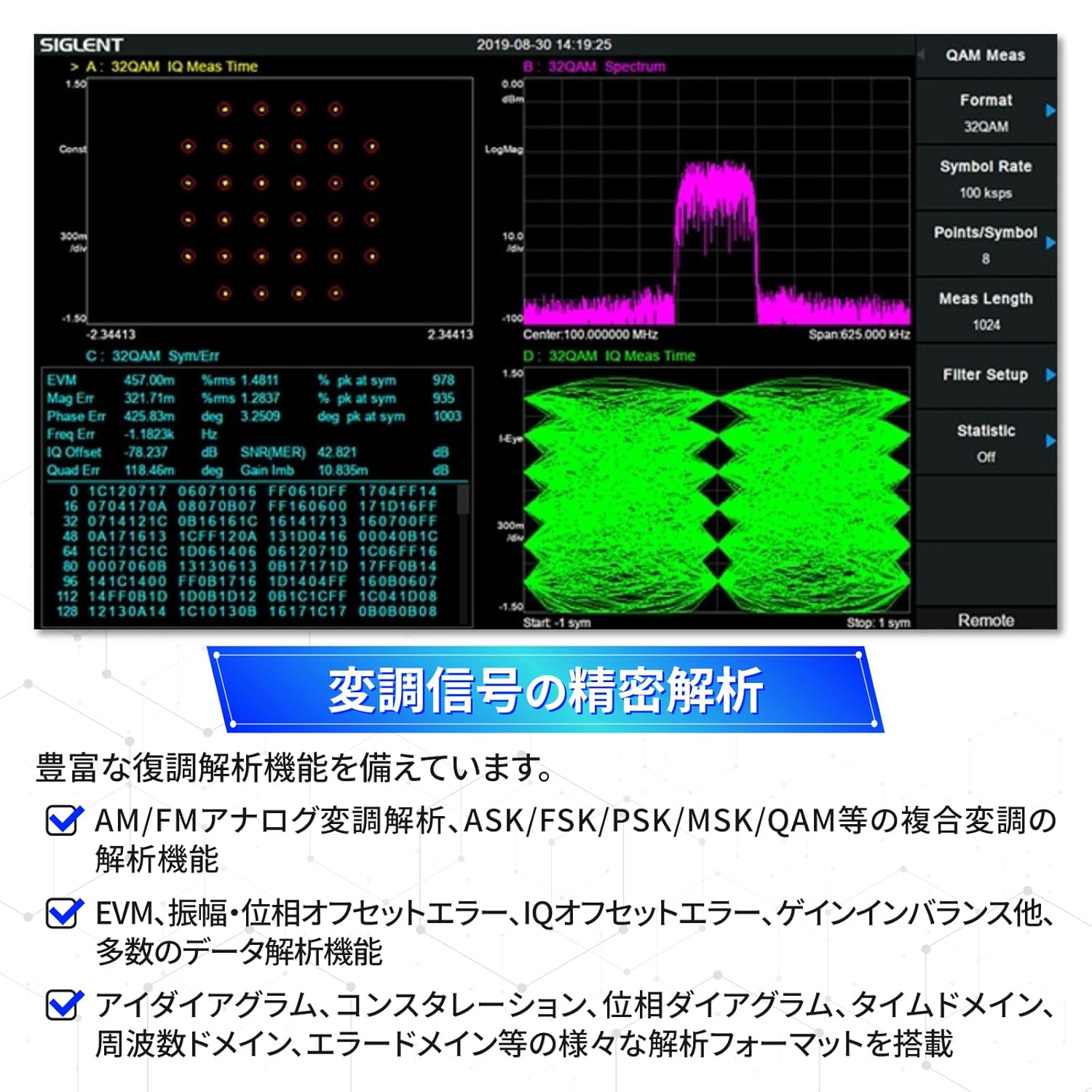

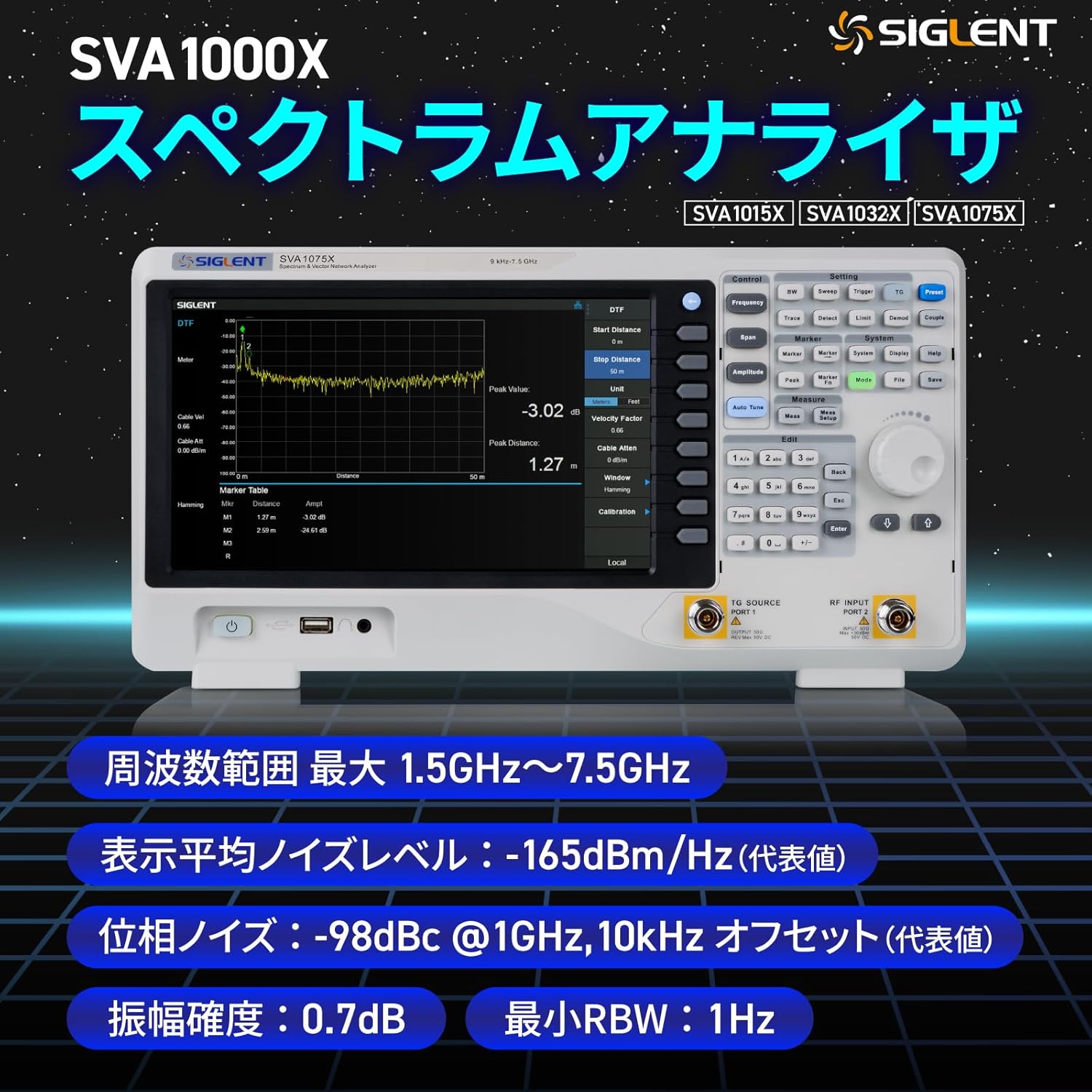

Siglent SVA1015X Spectrum analysis: 9 kHz - 1.5 GHzVector network analysis: 100 kHz - 1.5 GHz-156 dBm/Hz Displayed Average Noise Level (DANL)= 1.2 dB total amplitude accuracyPhase noise: <-98 dBc/Hz @ 1 GHz, 10 kHz offset 1.5 GHz Spectrum Analyzer with Vector Network Analysis The SIGLENT SVA1000X series spectrum and vector network analyzers are powerful and flexible tools for RF signal and network analysis.With a frequency range of up to 7.5 GHz, the SVA1000X series delivers reliable automatic measurements and multiple modes of operation - the base model is both a spectrum analyzer and a vector network analyzer. Optional functions include distance-to-fault location, vector signal modulation analysis, and much more.Applications for the SVA1000X include broadcast monitoring and evaluation, site surveying, S-parameter measurement, cable and antenna testing, analog/digital modulation analysis, EMI pre-compliance testing, research and development, education, production, and maintenance.The chart below provides a brief overview of products in this series.ModelFrequency RangeResolution Bandwidth (RBW)Phase NoiseTotal Amplitude AccuracyDisplay Average Noise Level (DANL)SVA1015X9 kHz to 1.5 GHz1 Hz to 1 MHz, in 1-3-10 sequence<-98 dBc/Hz @ 1 GHz, 10 kHz offset=1.2 dB-156 dBm/Hz, Normalized to 1 Hz (typ.)SVA1032X9 kHz to 3.2 GHz1 Hz to 1 MHz, in 1-3-10 sequence<-98 dBc/Hz @ 1 GHz, 10 kHz offset<0.7 dB-161 dBm/Hz, Normalized to 1 Hz (typ.)SVA1075X9 kHz to 7.5 GHz1 Hz~3 MHz<-98 dBc/Hz @ 1 GHz, 10 kHz offset<0.7 dB-165 dBm/Hz, Normalized to 1 Hz (typ.) Product Features 10.1 Inch Display with Multi-Touch Screen

• Spectrum analysis: 9 kHz - 1.5 GHz
• Vector network analysis: 100 kHz - 1.5 GHz
• -156 dBm/Hz Displayed Average Noise Level (DANL)
• = 1.2 dB total amplitude accuracy
• Phase noise: Resolution bandwidth (RBW): 1 Hz to 1 MHz, in 1-3-10 sequence
