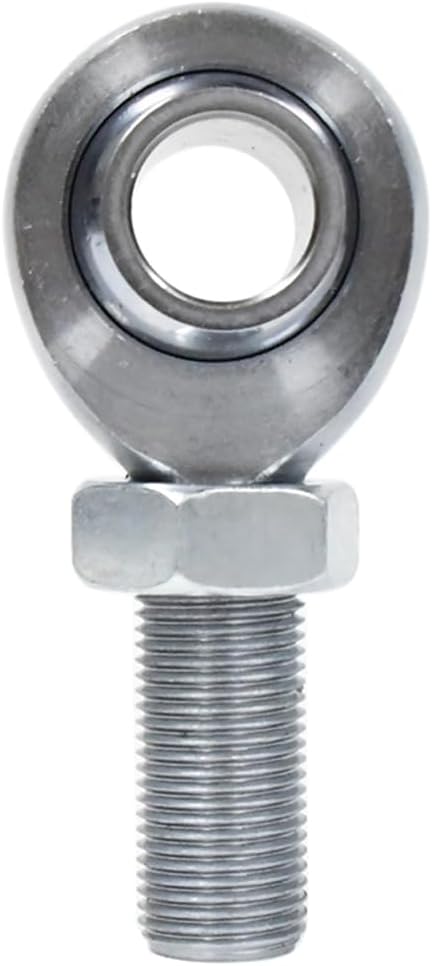

Hex Autoparts Chromoly Heim Joints Rod Ends RH & LH 3/4"-16 Thread x 5/8" Bore Male Panhard Rod End Kit with Jam Nuts XML XMR10-12

Specification: Rod End (XML10-12 & XMR10-12) Right Hand, Male, Heat Treated Chromoly, Hard Chrome Plated, Loader Slot Rod End Material: Heat Treated Chromoly, Hard Chrome Plated Bore: 5/8" (.625" ) Width: 1.75" Ball Width: 3/4" (.750" ) Thread Size: 3/4"-16 Thread Length: 1.75" Static Radial Load:40,572 lbs Center Line Length:2.875" Torque Specs: F2-Moderately tight. Users should be able to move the ball by hand, but noticable resistance will be felt.This does not fit for truck Jam Nut (JNL12S & JNR12S) Qty: One RH & One LH Thread: 3/4"-16 Width: 1 1/8" (1.125") Height: 27/64" Carbon Steel, Silver Zinc Plated

• Package Includes: 1 x LH 3/4"-16 Thread x 5/8" Bore Rod End | 1 x RH 3/4"-16 Thread x 5/8" Bore Rod End | 1 x LH 3/4"-16 Thread Jam Nut | 1 x RH 3/4"-16 Thread Jam Nut
• They are heat-treated and hard chrome plated to give you a better finish for consistent performance
• The included jam nut is zinc coated for superior durability
• Easier mounting and adjustment of position in installations
• They can be used in a wide range of industries in many of different applications such as mechanisms, linkages and control rods
